Events
When both W+ and W- decay to produce a quark
and an antiquark we get
events containing two quarks and two antiquarks.
We therefore expect to see four "jets" of hadrons:
Example
Event Number 1

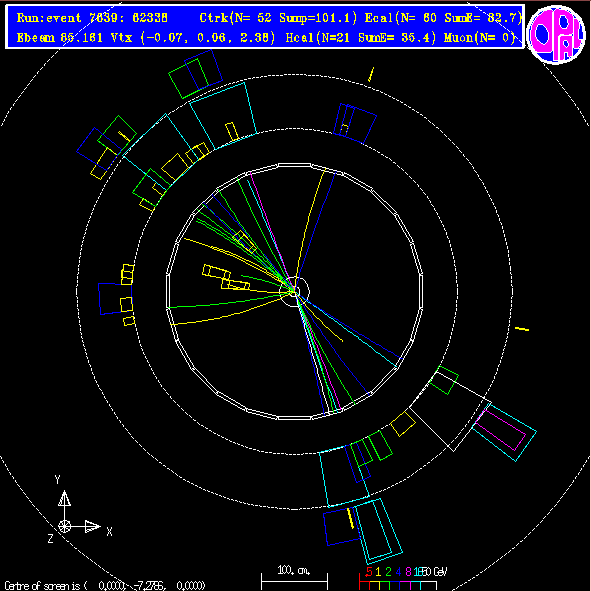

End-On View of Event
|

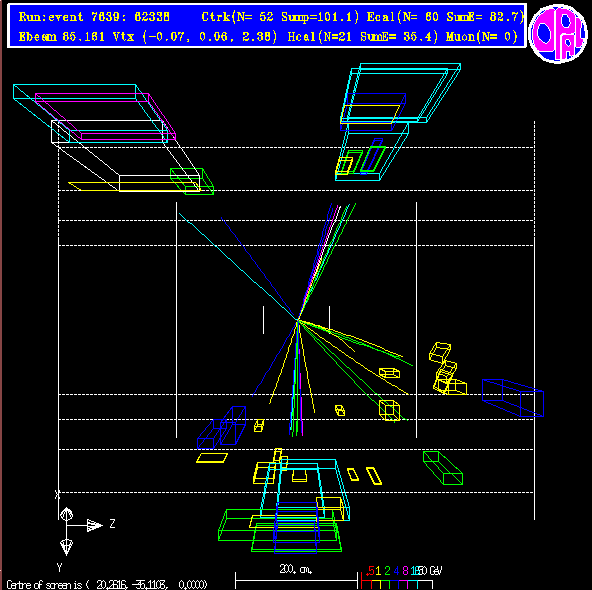

Side View of Event
|

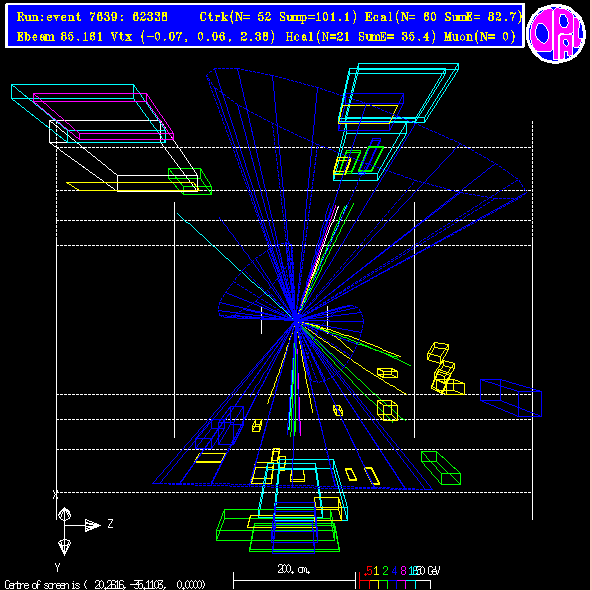

Side View of Event with Cones Drawn to Show 4 Jets
|
Example
Event Number 2

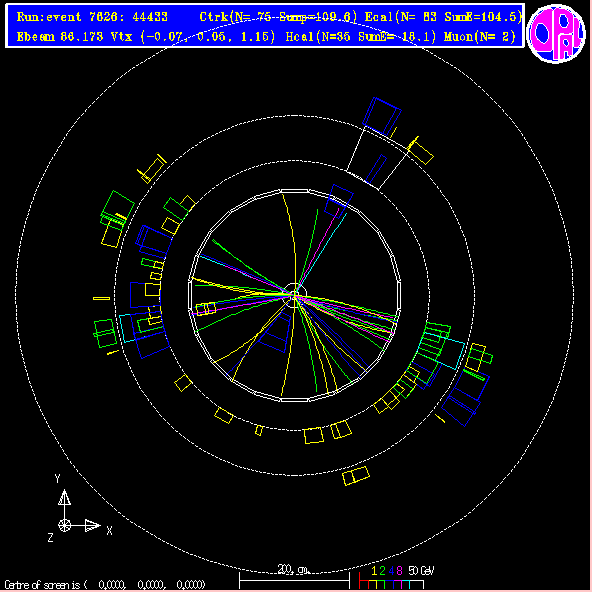

End-On View of Event
|

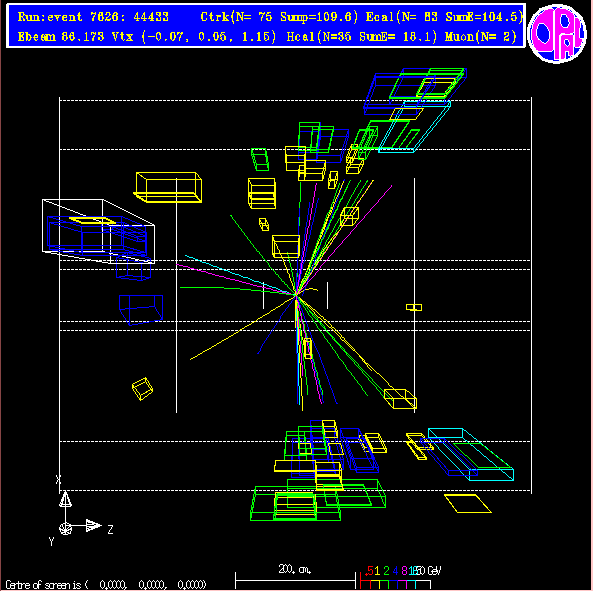

Side View of Event
|
Next take a look at an example
event.
